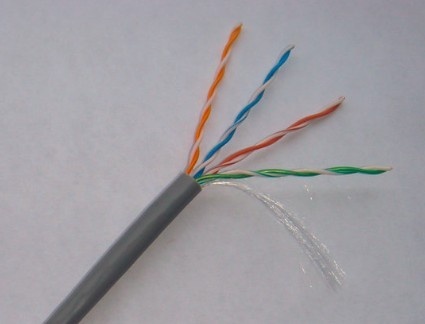

| Product name：UTP CAT5E |
| Item： |
| Details： |
| Cable Construction |
| Conductor |
24AWG Solid Bare Copper |
| Insulation |
HDPE |
| Core / Pairs |
8/4 |
| Outer Jacket |
5.20mm+/-0.1mm PVC (Polyethylene, LSZH) |
| Options |
Jelly filled is available; Jacket: UV, FR, RoHS Complied |
| Mechanical Properties |
| Elongation |
Min.300% |
| Temperature Range |
-20 up to +75℃ |
| Tensile strength |
Min. 1.68kg/mm2 |
| Electrical Properties (at 20℃) |
| Conductor Resistance |
Max. 9.38Ω/100m |
| Resistance Unbalance |
Max. 2% |
| Insulation Resistance |
Min. 150Ω/KM |
| Mutual Capacitance |
Max. 5600pF/100m |
| Capacitance Unbalance |
Max. 330pF/100m |
| Impedance |
100+/-15 Ω |
| Spark Test |
2000V |
| Velocity of Propagation |
67% |
| MHz |
Attenuation (dB/100m) |
RL
(dB) |
Next
(dB) |
PS Next
(dB) |
| 1 |
2.0 |
20 |
65.3 |
63.5 |
| 4 |
4.1 |
23 |
56.3 |
54.2 |
| 8 |
5.8 |
24.5 |
52.4 |
50.5 |
| 10 |
6.6 |
25 |
51.3 |
49.2 |
| 16 |
8.2 |
25 |
49.3 |
47.4 |
| 20 |
9.3 |
25 |
48.8 |
46.9 |
| 25 |
10.4 |
24 |
45.3 |
43.4 |
| 31.25 |
11.7 |
23 |
43.0 |
41.8 |
| 62.5 |
17.0 |
21 |
39.2 |
37.2 |
| 100 |
22.0 |
20 |
36.3 |
34.4 |
| 155 |
28.1 |
19 |
35.5 |
33.6 |
| 200 |
32.4 |
19 |
31.8 |
29.9 |
| 240 |
36.0 |
18 |
30.6 |
28.7 |
| 300 |
41.0 |
18 |
29.2 |
27.0 |
| 350 |
44.9 |
17 |
28.0 |
25.6 |
|
 |
|
|
