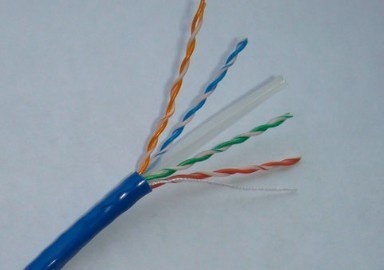

| Product name：UTP CAT6 |
| Item： |
| Details： |
| Cable Construction |
| Conductor |
23AWG Solid Bare Copper |
| Insulation |
HDPE |
| Cores / Pairs |
8/4 |
| Filler |
Plastic filler |
| Outer Jacket |
6.20mm+/-0.1mm (Polyethylene, LSZH) |
| Options |
Jelly filled is available; Jacket: UV, FR, RoHS Complied |
| Mechanical Properties |
| Elongation |
Min.300% |
| Temperature Range |
-20 up to +75℃ |
| Tensile strength |
Min. 1.68kg/mm2 |
| Electrical Properties (at 20℃) |
| Conductor Resistance |
Max. 9.38Ω/100m |
| Resistance Unbalance |
Max. 2% |
| Insulation Resistance |
Min. 150Ω/KM |
| Mutual Capacitance |
Max. 5600pF/100m |
| Capacitance Unbalance |
Max. 330pF/100m |
| Impedance |
100+/-15 Ω |
| Spark Test |
2000V |
| Velocity of Propagation |
67% |
| MHz |
Attenuation
(dB/100m) |
RL
(dB) |
Next
(dB) |
PS Next
(dB/100m) |
| 1 |
2.0 |
23 |
74.3 |
72.3 |
| 4 |
3.8 |
23 |
65.3 |
63.3 |
| 10 |
6 |
23 |
59.3 |
57.3 |
| 16 |
7.6 |
23 |
56.2 |
54.2 |
| 20 |
8.5 |
23 |
54.8 |
52.8 |
| 31.2 |
10.7 |
23 |
51.9 |
49.9 |
| 62.5 |
15.1 |
23 |
47.4 |
45.4 |
| 100 |
19.1 |
23 |
44.4 |
42.3 |
| 125 |
21.3 |
21 |
42.8 |
41 |
| 155.5 |
23.8 |
21 |
41.4 |
40 |
| 175 |
25.3 |
21 |
40.7 |
39 |
| 200 |
27 |
21 |
39.8 |
37.8 |
| 250 |
32.6 |
19 |
38.3 |
36.3 |
| 300 |
35.7 |
|
37.1 |
|
| 400 |
41.2 |
|
35.3 |
|
| 450 |
42 |
|
34.5 |
|
 |
|
|
